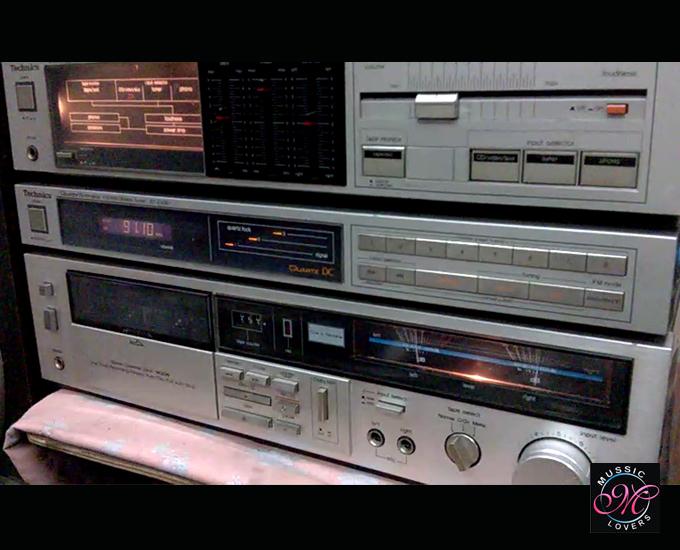

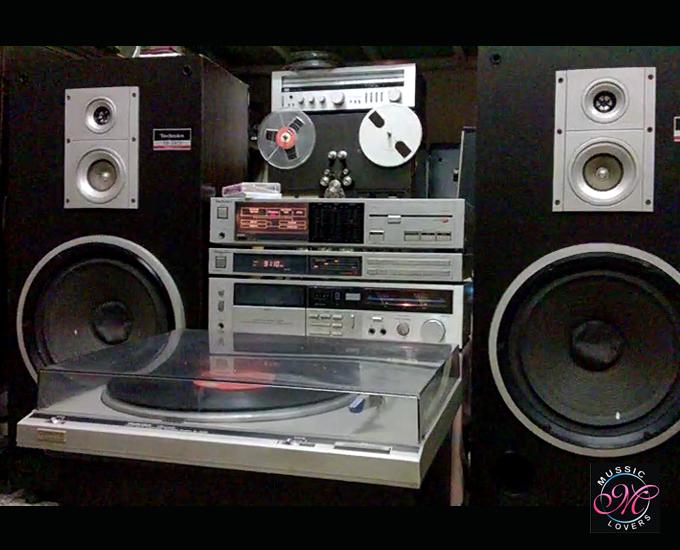

TECHNICS, JAPAN RACK TYPE VINTAGE MUSIC SYSTEM

SPECIFICATIONS

POWER OUTPUT: 30 WATTS PER CHANNEL INTO 8 OHMS (STEREO)

FREQUENCY RESPONSE: 10HZ TO 70KHZ

TOTAL HARMONIC DISTORTION: 0.05%

INPUT SENSITIVITY: 2.5MV (MM), 150MV (LINE)

SIGNAL TO NOISE RATIO: 80DB (MM), 97DB (LINE)

OUTPUT: 150MV (LINE)DIMENSIONS: 430 X 86 X 240MM

WEIGHT: 4.4KG

YEAR: 1984

TYPE: MONO/STEREO TUNER

TUNING BANDS: FM, MW, LW

TUNING SCALE: DIGITAL

FM TUNING RANGE: 88 TO 108 MHZ

MW TUNING RANGE: 522 TO 353 KHZ

LW TUNING RANGE: 153 TO 353 KHZ

SENSITIVITY: 0.9UV (FM), 20UV (MW), 100UV (LW)

SIGNAL TO NOISE RATIO: 69DB (FM)

DISTORTION: 0.3% (FM)

SELECTIVITY: 60DB (FM), 55DB (MW), 55DB (LW)

FREQUENCY RESPONSE: 5HZ TO 18KHZ (FM)

DIMENSIONS: 430 X 53 X 240MM

WEIGHT: 2.1KG

YEAR: 1984

DESCRIPTION

TECHNICS SL-Q200 IS AN 2 SPEED STEREO TURNTABLE WITH FITTED TONE ARM SUITABLE FOR T4P P-MOUNT TYPE CARTRIDGES & STYLUS.

SPECIFICATIONS

TYPE: QUARTZ DIRECT DRIVE

FEATURES: AUTOMATIC RETURN AND STOP

MOTOR: BRUSH LESS DC MOTOR DRIVE

CONTROL METHOD: QUARTZ PHASE LOCKED CONTROL PLATTER: ALUMINIUM DIE-CAST

SPEEDS: 33.33 AND 45RPM

WOW AND FLUTTER: 0.012% WRMS

RUMBLE: -56DB

TONE ARM: STATICALLY BALANCED STRAIGHT TONE ARM EFFECTIVE LENGTH: 230MM

OVERHANG: 15MM

EFFECTIVE MASS: 7.5G

STYLUS PRESSURE ADJUSTMENT: 1.25G +-0.25G

SPECIFICATIONSTYPE:

2-HEAD, SINGLE COMPACT CASSETTE DECK

TRACK SYSTEM: 4-TRACK, 2-CHANNEL STEREO

TAPE SPEED: 4.8 CM/S

HEADS: 1 X RECORD/PLAYBACK, 1 X ERASE

MOTOR: ELECTRICAL GOVERNOR DC

TAPE TYPE: TYPE I, CRO2, METAL

NOISE REDUCTION: B

FREQUENCY RESPONSE: 20HZ TO 17KHZ  (METAL TAPE)

SIGNAL TO NOISE RATIO: 66DB  (DOLBY B)

WOW AND FLUTTER: 0.05%

INPUT: 60MV (LINE), 0.25MV (MIC)

OUTPUT: 0.4V (LINE)

DIMENSIONS: 430 X 109 X 233MM

WEIGHT: 4KG

FINISH: BLACK, SILVER

DRIVERS : 12″ WOOFER,  3 INCH MID / 1INCH TWEETER WITH COMBINE 3D COVER BRACKET WALNUT VENEER70W RMS POWER WITH 140W.

MAXIMUM EFFICIENCY : 90 DB / /1M / 1W

DIMENSIONS [H X W X D] : 800 X 370 X 265MM

WEIGHT : 10.5KG
